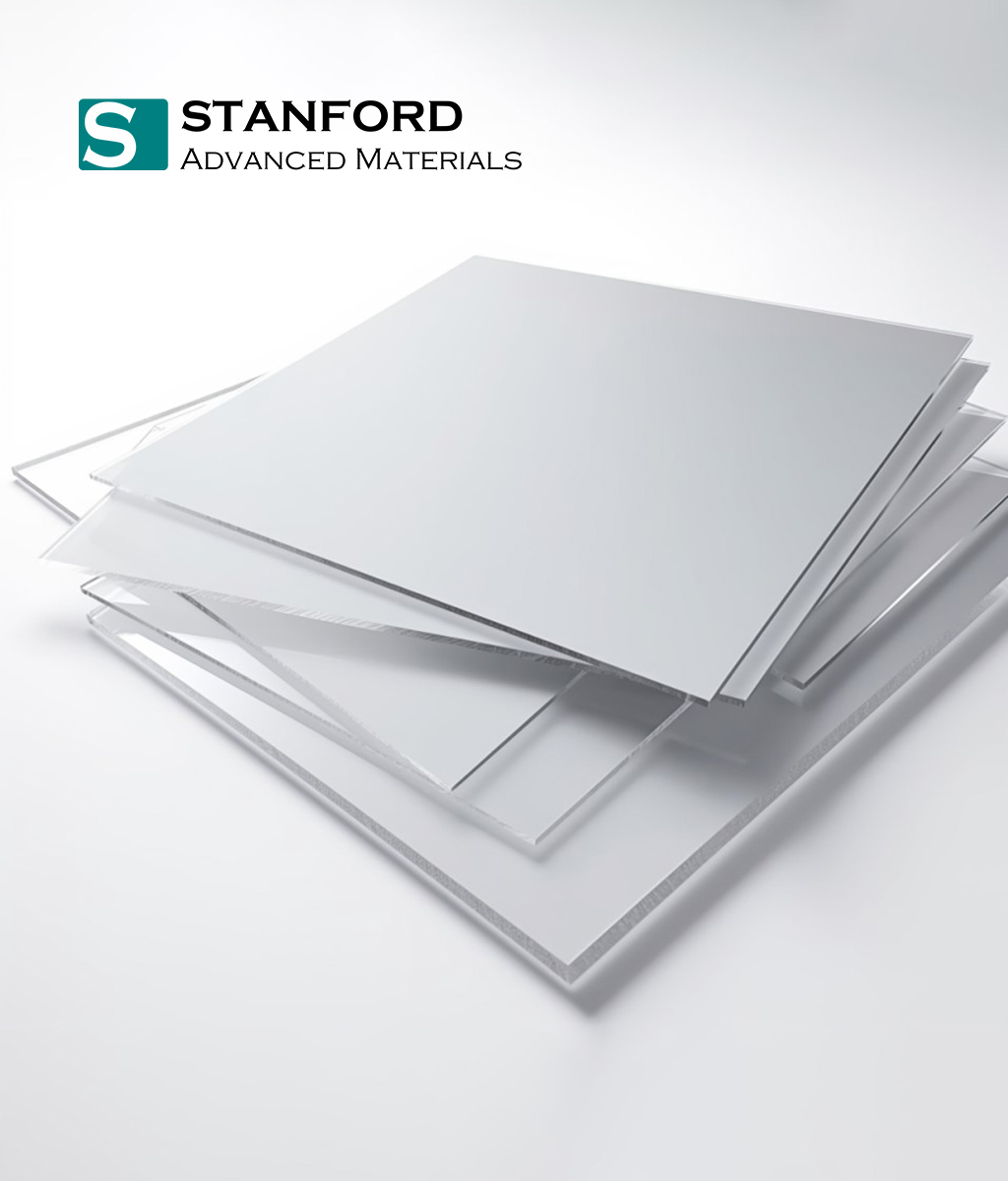

Gadolinium Scandium Oxide Crystal Substrates Description
Gadolinium scandium oxide crystal substrates have high dielectric grating constant, a broadband gap, thermal stability and other advantages. The crystal structure of the distorted perovskite, has a good lattice match with the perovskite structure of thin film materials. GdScO3 crystal is mainly used in multiferroic superconducting perovskite materials, ferroelectric and epitaxial growth.
Gadolinium Scandium Oxide Crystal Substrates Specification
|
Molecular formula |
GdSCO3 |
|
Colour |
colorless |
|
Cell parameters |
0.3984nm |
|
Melting point |
ca. 2400 K |
|
Density |
6,6 g/cm³ |
|
Growth method |
Czochralski method |
|
Crystal Structure: |
orthorombic, perovskite |
|
Coefficient of thermal expansion |
10,9 x 10-6 K-1 |
|
Regular size |
10 x 10 mm² , 10 x 5 mm²，0.5 mm, 1 mm thickness |
|
Polishing |
Single side polished (SSP) or Double side polished (DSP) |
Gadolinium Scandium Oxide Crystal Substrates Application
Gadolinium scandium oxide crystal substrates have the following applications:
– GdScO3 is an excellent ferroelectric film substrate material;
– GdScO3 can be well matched with the superconductor in perovskite structure
Details
| Catalog No. | CY2422 |
|---|---|
| Size | 10 x 10 mm² , 10 x 5 mm²,0.5 mm, 1 mm |
| Material | GdScO3 |
| Density | 6.6 g/cm3 |
| Crystal Structure | Orthorombic & Perovskite |
| Growth Method | Czochralski Method |
